Don’t Have the Setup for It? We Probably Do.

The VelociWrapper 312 wraps cable & conduit into a tight, consistent bundle.

DOES THE VELOCIWRAPPER 312 FIT YOUR PROJECT NEEDS?

BUNDLING BY HAND

The Problem With Traditional Installs

Bundling cable by hand, whether it’s triplexed MV or a run of fiber conduits, is a prehistoric way to work: a crew out there every day, hauling heavy cable and burning through zip ties. It’s slow, it’s hard on people, and the quality of the bundle depends on how tired the crew is by the end of the day.

VelociWrapper evolves past it. Same bundle, first cable to last.

THE VELOCIWRAPPER EVOLUTION

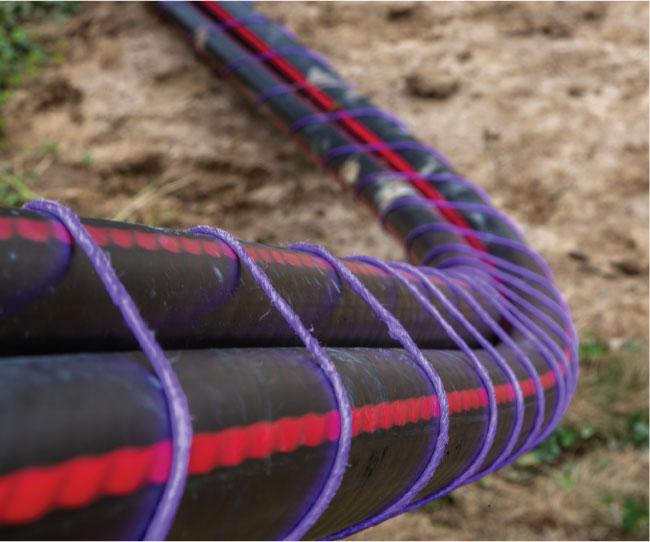

Cable Goes In Loose & Comes Out Bundled

Cable or conduit feeds through the machine and comes out bundled. Nobody lifts it into position and nobody ties it, so the bundle is very consistently held together, easier to handle, and triplex with material that is less costly than expensive zip ties.

Crews on wind and solar sites use it to triplex MV cable. Contractors in data centers use it to bundle multiple fiber conduits at once. Factories use it to bundle pre-fabricated cable whips before being shipped out to construction sites.

No motors or engines. No electricity. Just pure velocity.

Common Questions

FAQ

Will it damage my cable?

We built the 312 for cable from the beginning. It isn’t a machine built for something else that we adapted. It handles 4/0 through 1500 MV cable, or conduit that is roughly 1 to 3 inches outside diameter.

How does it fit what we already do?

You shouldn’t have to change your process to use it, so there are multiple ways to run it. You can mount it directly to your reel trailer. You can mount it on our trailer and double-tow it behind your reel trailer. You can park it and pull the cables through without moving it. Or you can hang it off an excavator and track next to the trench as you go.

How much maintenance?

Not much. There are no motors, no engines and no electronics on it, so there isn’t a lot that can fail. What it does need is grease. There are several grease points and they need to be greased on a regular schedule.

“We’ve installed around 95,000 trench feet of cable in the last 30 days at an average savings of $5 per foot.”

350MW SOLAR PROJECT IN TEXAS

SPECS: VELOCIWRAPPER® 312

There are more than 125 VelociWrappers working right now, mostly in the United States, Canada, and Australia.

CABLE RANGE

4/0 to 1500 MV cable (120 to 800 mm)

CONDUIT RANGE

1 to 3 in (25 to 77 mm) overall diameter

WHAT CAN BE WRAPPED?

Cables, Conduit

WAYS TO RUN IT

On a reel trailer, On our specialized trailer, parked, or on an excavator

POWER

None. Fully mechanical

IN THE FIELD

125+ across the US, Canada and Australia

WEIGHT

1,135 lbs (515 kg)

DIMENSIONS

75” (206mm) L, 48” (127mm) W, 50” (122mm) T

Works With

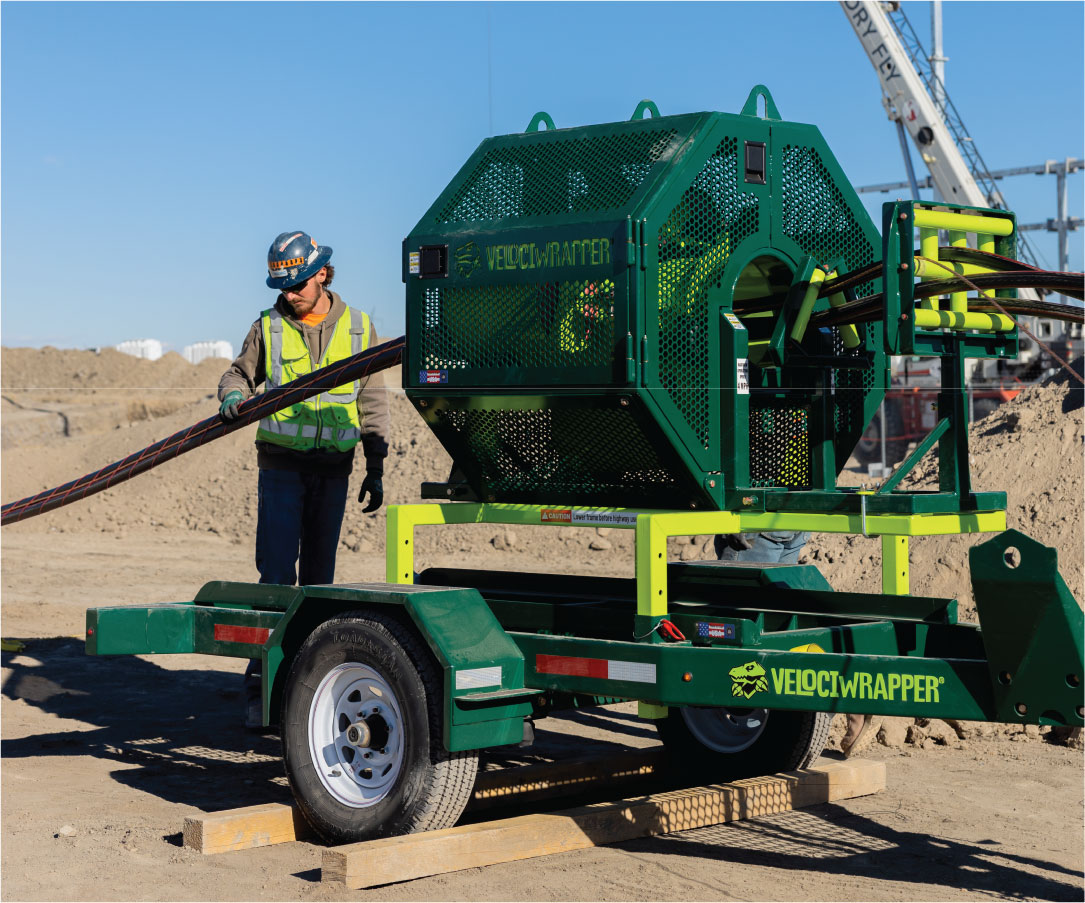

VelociWrapper Trailer

A 15 ft trailer that carries the 312 along with the Fairlead and the Excavator Adapter, and adjusts to match your reel trailer height.

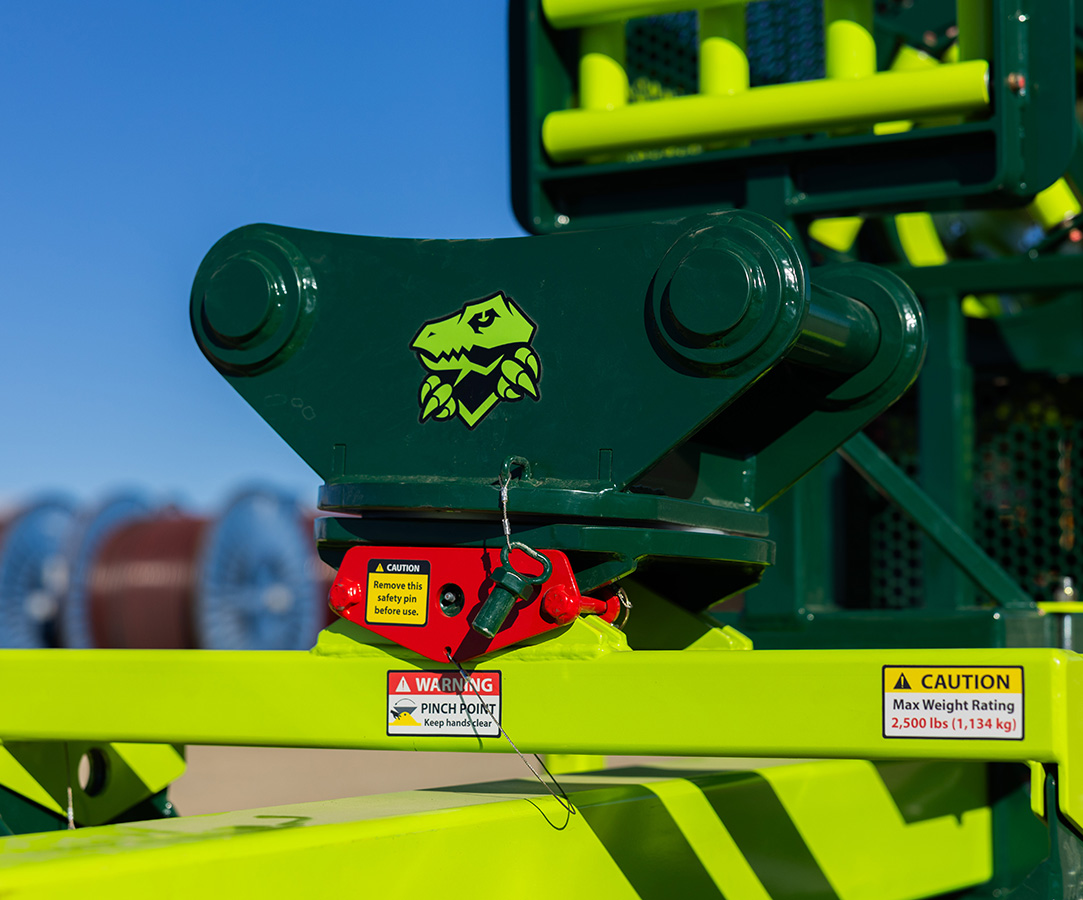

Excavator Adapter

Mounts the top of your 312 so you can hang it off an excavator and wrap straight into the trench.

Telovor Fairlead

Lifts and places the cable once it’s bundled.

Reelodon

Reels the cable and/or conduit off the reels.

FAQ

What is the VelociWrapper 312?

It’s a machine that bundles cable and/or conduit in a single pass, instead of a crew tying it by hand with zip ties. It’s the standard VelociWrapper. The VelociWrapper JAW is the version that opens up mid-run.

What size cable or conduit does it handle?

4/0 through 1500 (120 to 800 mm) cable, or roughly 1 to 3 inches (25 to 77 mm) outside diameter.

Can it bundle fiber conduit for data centers?

Yes. Contractors installing fiber conduit in data centers run the same machine with the same setup and bundle multiple conduits at once. How many depends on the size of the conduit.

Can it triplex MV cable on a solar or wind site?

Yes, that’s what it was originally built for. It bundles the three phases together along with an optional fiber conduit and ground wire the way the plans call for.

Will it damage the cable?

It was designed for cable from the start rather than adapted from a machine built for something else. This means every part of the machine is designed to reduce and eliminate cable damage.

What maintenance does it need?

Very little. There are no motors, engines or electronics on it. It needs grease at the grease points on a regular schedule.
