Lift & Place Heavy Cable With Your Existing Equipment.

The Telovor Fairlead mounts to a telehandler or skid steer and guides cable into the trench or tray from as far out as 15 feet.

FIND OUT IF IT WORKS FOR YOU APPLICATION.

THE PROBLEM IT REMOVES

Cable This Heavy Has to Be Lifted by Something

Once the cable comes off the reel it still has to get into the trench or cable tray, and at these sizes it isn’t going in by hand. So crews come up with something. A custom wheel on a chain, an old car rim, or pushing the cable in with a piece of equipment and hoping the jacket holds up.

Damaged cable is expensive on its own. What’s worse is damage nobody catches, because it doesn’t show up until you’re testing and energizing the run. Finding it then means tracking it down and repairing it with the schedule already working against you.

HOW IT WORKS

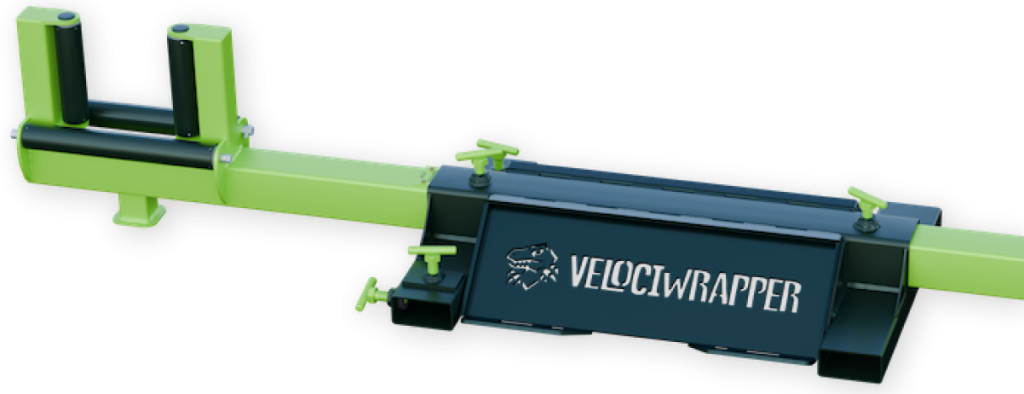

A Roller Arm That Picks the Cable Up & Puts It Where You Want It

The Fairlead lifts the cable and guides it in on rollers, wrapped or unwrapped. The reach adjusts out to 15 feet, so you set it to whatever the job needs instead of working around a fixed arm.

Fork pockets and a skid steer quick-attach plate are both built into the same unit, so it runs off whatever you have on site. There’s nothing to convert and nothing to order twice.

The rollers are rated at 6,000 lb (2,720 kg), which easily handles triplexed 1500 MCM (800mm) MV or HV cable with conduit and ground with room left over.

THE BUILD

You Don’t Need an Excavator on Site for This

Forklifts and skid steers are cheaper to own and cheaper to rent than an excavator. You don’t have to relocate an excavator to lift and manage cables. The Telovor keeps your excavators doing what they do best.

SPECS: TELOVOR FAIRLEAD

REACH

Adjustable, out to 15 ft (4.5 m)

WEIGHT RATING

5,500 lb (2,500 kg) Max

SIDE ROLLER FORCE RATING

2,500 lb (1,100 kg) Max

MOUNTING

Fork pockets and skid steer quick-attach, both built in

RUNS OFF

Forklift, telehandler or skid steer

HANDLES

Cable and/or conduit, wrapped or unwrapped

WEIGHT

970 lbs (440 kg)

DIMENSIONS

15’ (4.57 m) L, 39” (990 mm) W, 28” (711 mm) T

Works With

VelociWrapper 312 & VelociWrapper JAW

lets you release the JAW and lift it off in seconds instead of unbolting it every time the cables go in or out. If you own a JAW and you’re still reaching for a wrench, start here.

VelociWrapper Trailer

A 15 ft trailer that carries the 312 along with the Fairlead and the Excavator Adapter, and adjusts to match your reel trailer height.

Reelodon

Reels the cable and/or conduit off the reels.

FAQ

What is the Telovor Fairlead?

It’s a roller arm that lifts heavy cable or conduit and guides it into a trench or cable tray, at a reach that adjusts out to 15 feet.

What equipment does it mount to?

Forklifts, telehandlers and skid steers. Fork pockets and a skid steer quick-attach plate are both built into the same unit, so nothing has to be converted.

Do I need an excavator to place heavy cable?

Not with a Fairlead. It runs off equipment that’s already on most job sites, and forklifts and skid steers are cheaper to own and rent than an excavator.

How much weight can it handle?

The rollers are rated at 5,500 lb. It handles triplexed 1500 (800mm) cable with conduit and ground with room to spare, so in practice the limit is whatever machine is carrying it.

Will it damage the cable?

It was purpose built to guide and lift cables. The entire design is built around protecting the cables while it works. It guides the cable on rollers, which is the difference between it and a chain, a wheel or a bucket.

Can it place bundled cable?

Yes, wrapped or unwrapped.

How far out does it reach?

It adjusts out to 15 feet, so you can set it to whatever the run needs. From center of machine (telehandler or skid steer) to center of rollers extended all the way out is around 11’-3” (3.43 m).

What is the biggest bundle it can hold?

The largest bundle dimensions it can lift is 12” x 12” (305 x 305 mm).
